The Danfoss ABQM valve with actuator and 20mm threaded connections is a control valve with full authority and an automatic balancing function/flow limitation, ensuring and controlling the required flow on every terminal unit while maintaining hydronic balance in the system.Brass construction;Actuator acts as control valve for terminal units like AHUs, FCUs or radiation panels;Actuators are available for On/Off, 0-10 Volt, 4-20 mA or floating point;Full range of Danfoss actuators available for the AB-QM for every control strategy

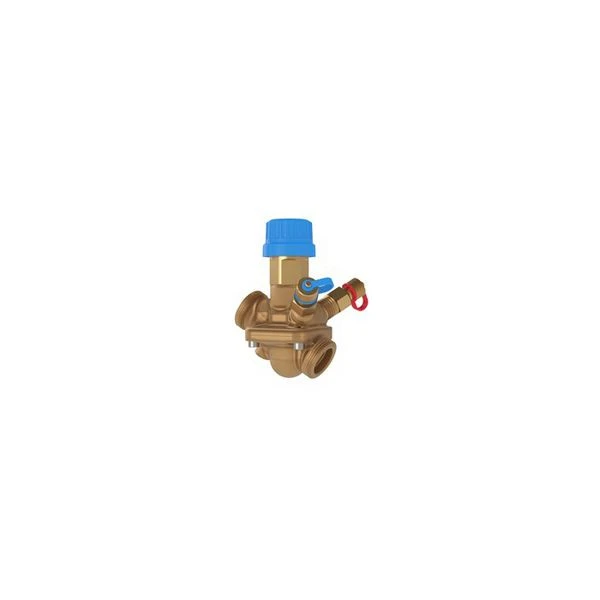

Danfoss AB-QM Automatic Balance Valve With Test Node 20mm
£300.00 Original price was: £300.00.£95.99Current price is: £95.99.
SKU: PK75606 Categories: Burner Parts, Heating, Valves
- Experience the difference quality makes.
- Reliable Payments for Reliable Shopping
- The quality solution for all your needs.
- Online assistance, always just a message away.

| Brand | Danfoss |
|---|---|
| Approvals | RoHSWEEE |
| Type | Pressure Independent Balancing Valve |
| Supplier Product Code | 003Z1213 |
| Standards | RoHSWEEE |
| Maximum Operating Temperature | 120 |
| Working Pressure | 16 |
| Thread Size | 1 inch |
| Size | 20mm |
| Material | Brass |
| Body Material | Brass |
| Connection Size (mm) | 20 mm |
| Hazardous | N |
| Colour | Brass |
| Weight | 0.40500 |
| Range Type | Balancing Valves |
| Range Name | AB |
| Range | AB-QM |
| Operating Temperature | -10 to 120 |
| Model Number | QM |
| Material Type | Brass |
| Connection Type | Threaded |
| Connection Size | 1 inch |
| Connection | 1 inch BSPP Male |
| WEEE Compliant | N |
