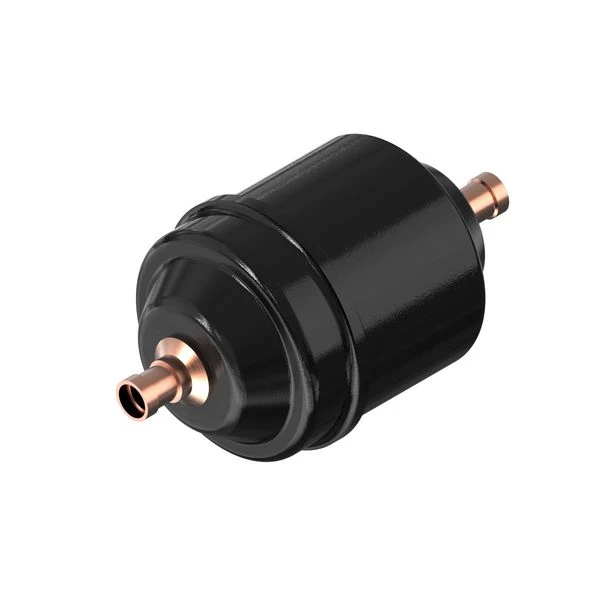

Danfoss DCL DCL052S Filter Drier Solder Connection 1/4″

This Danfoss Eliminator DCL052S 5 cu.inch hermetic filter drier with 1/4″ solder inlet and outlet is manufactured for use in applications needing a high moisture and acid absorption capacity. A solid core, composed of 80% molecular sieve and 20% activated alumina, is ideal for systems using HCFC and CFC refrigerants and mineral or alkyl benzene oils and type DCL driers are especially recommended for systems that operate at high condensing temperatures, requiring a higher drying capacity80% 3A molecular sieve with 20% activated alumina;UL approved for maximum working pressure 610 psig;Corrosion-resistant, powder-painted finish;Suitable for use in all environments including marine;Installation in any orientation, as long as arrow points in flow direction;25µm filter for high retention with minimal pressure drop;Thermally stable up to 250°F;Solid core with binding material held to absolute minimum;Core selection should be based on refrigerant oil used in system
