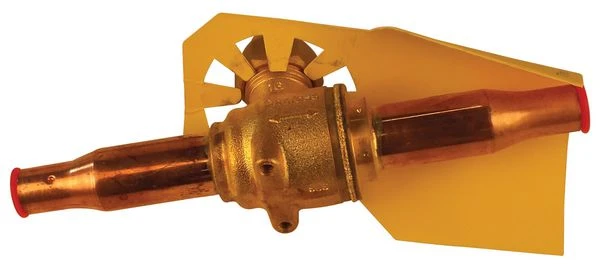

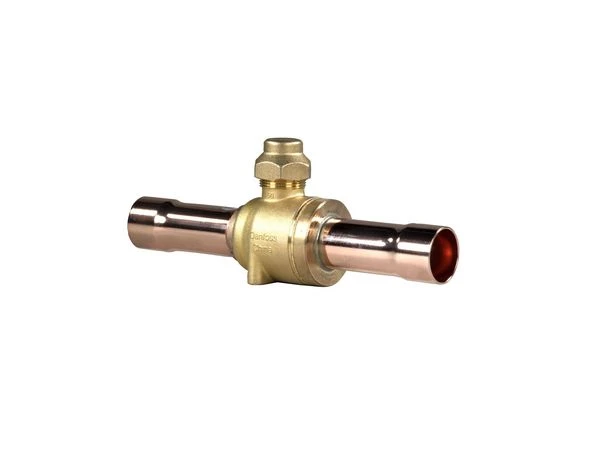

Danfoss GBC10S Solder Ball Valve 3/8″

GBC ball valves are manually operated shut-off valves suitable for applications where bi-directional flow is a requirement; GBC valves are approved for applications in liquid, suction, and hot gas lines in refrigeration and air conditioning systems; GBC valves offer maximum tightness across the seat and seal, with minimum pressure drop; GBC valves give maximum flow in the fully open position;They are designed for operation within a broad temperature range and are approved for use with any fluorinated refrigerant;Standard GBC valves may be used in applications using high pressure refrigerants, including R410A, and GBC bi-directional ball valves can be delivered with or without external access port; For CO2 applications a dedicated range is available with a max;working pressure of 90 bar (1300 psig); GBC valves are equipped with a one-piece seal cap to prevent tampering;Complies with European Safety Directive EN 378 (Safety and environmental requirements).GBC can be used for all fluorinated refrigerants (CFC, HCFC, HFC);Temperature range: -40 to +150 °C;Max working pressure (PS/MWP);GBC 6s to 42s with/without access port: 45 bar (650 psig);GBC 54s without access port: 45 bar (650 psig);GBC 54s with access port: 35 bar (500 psig);GBC 67s to 79s with/without access port: 35 bar (500 psig);Test pressure: 65 bar (940 psig);Approvals: UL, CE
