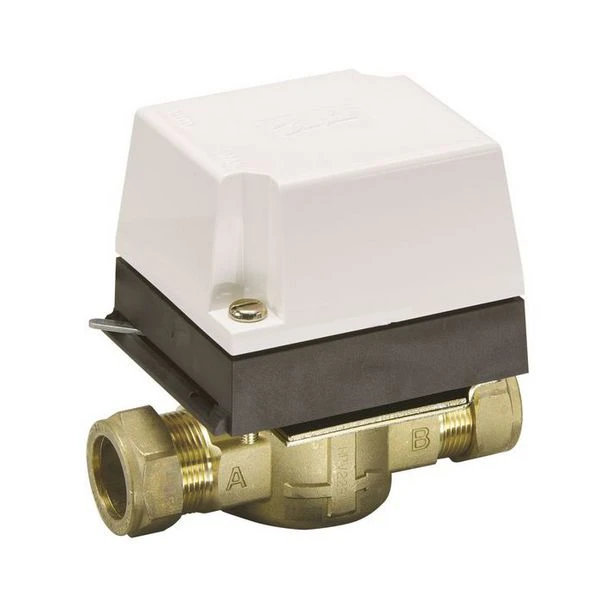

Danfoss H Series HP22 2 Port Valve 22mm
Original price was: £73.64.£51.55Current price is: £51.55.
- Experience the difference quality makes.
- Reliable Payments for Reliable Shopping
- The quality solution for all your needs.
- Online assistance, always just a message away.
Offering versions for copper and iron pipework, Danfoss H three port shoe motorised zone valves are designed to work with an actuator, with assembly of the actuator to the valve body made on-site. These high capacity bodies incorporate two self-cleaning positive shut-off shoes and flow through the port valves can be in either direction.KVS value 8.2M³/h;Differential pressure 1 bar;Working pressure 10 bar;Flow control type open and close;Interchangeable actuator
| Brand | Danfoss |
|---|---|
| Max Set Pressure | 1 bar |
| Width (mm) | 125 |
| WEEE Compliant | N |
| Type | Motorised Control Valve |
| Supplier Product Code | 087N6609 |
| Maximum Operating Temperature | 95 |
| Height (mm) | 80 |
| By Model Number | HP22B |
| Size | 22 mm |
| Material | Brass |
| Body Material | Brass |
| Connection Size (mm) | 22 mm |
| Depth (mm) | 225 |
| Colour | White/Metallic |
| Hazardous | N |
| Warranty | 1 Year |
| Voltage (V) | 230 |
| Range Type | DVC Valves |
| Range Name | H |
| Range | H Series |
| Model Number | HP22 |
| Control Device | Wired |
| Connection Type | Compression |
| Connection Size | 22 mm |
| Connection | 22 mm Compression |
| Application | Domestic Central Heating System |
