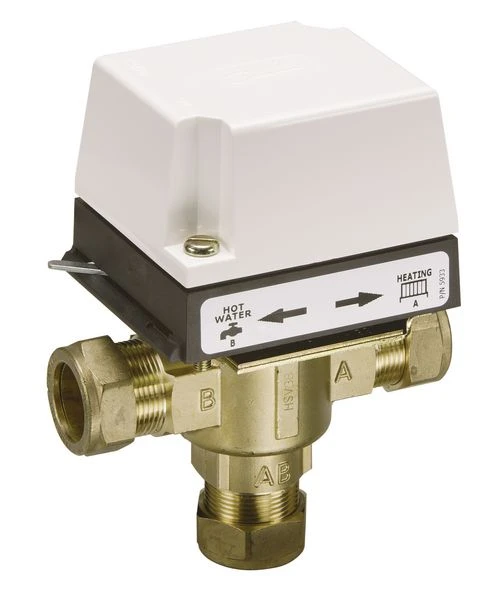

Danfoss H Series HS3B 3-port Valve And HSA3 22mm

Original price was: £107.94.Current price is: £75.56.

SKU: P339360 Categories: Central Heating Controls, Central Heating Valves, Heating

Experience the difference quality makes.
Reliable Payments for Reliable Shopping
The quality solution for all your needs.
Online assistance, always just a message away.

Offering versions for copper and iron pipework, Danfoss H three port paddle motorised zone valves are designed to work with an actuator, with assembly of the actuator to the valve body made on-site. These high capacity bodies incorporate two self-cleaning positive shut-off shoes and flow through the port valves can be in either direction.KVS value 6.1M³/h;Differential pressure 1 bar;Working pressure 10 bar;Voltage 230 VAC;Flow control type mid-position;Interchangeable actuator

Brand	Danfoss
Max Set Pressure	1 bar
Width (mm)	116
WEEE Compliant	N
Type	Motorised Control Valve
Supplier Product Code	087N6646
Maximum Operating Temperature	95
Height (mm)	92
By Model Number	HS3B
Material	Brass
Body Material	Brass
Connection Size (mm)	22 mm
Depth (mm)	232
Colour	Brass/Metallic
Hazardous	N
Warranty	1 Year
Voltage (V)	230
Range Type	DVC Valves
Range Name	H
Range	H Series
Model Number	HS3B
Control Device	Wired
Connection Type	Compression
Connection Size	22 mm
Connection	22 mm Compression
Application	Domestic Central Heating System
