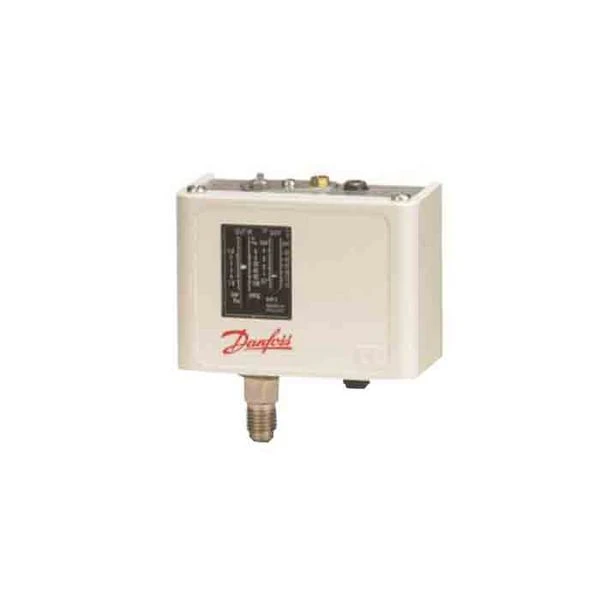

Danfoss KP1 Low Pressure Auto Reset Switch -0.2/7.5bar

Designed for use in refrigeration and air conditioning systems, the Danfoss KP1 low pressure switch with 1/4″ flare connection provides protection from low suction pressure or high discharge pressure. It can also be used to start and stop refrigeration compressors and fans on air-cooled condensers. Connecting directly to a single-phase AC motor up to 2kW, the KP1 can alternatively be installed in the control circuit of DC or large AC motors. This device is fitted with a SPDT switch, its position determined by the pressure switch setting and pressure at the connector.Snap action function for ultra-short bounce;Short bounce minimises wear and increases reliability;Manual trip function;Electrical contact function can be tested without tools;Vibration and shock-resistant;Compact design;Fully welded bellows element;High mechanical and electrical reliability;Pressure rating 0.2 to 7.5 bar;0.7 to 4 bar pressure differential;IP44 rated
