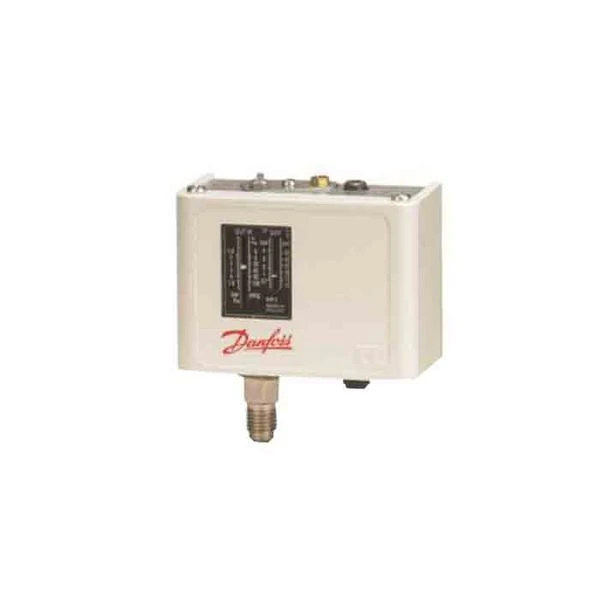

Danfoss KP1 Low Pressure Switch -0.9/7.0bar
Original price was: £52.70.£36.89Current price is: £36.89.
- Experience the difference quality makes.
- Reliable Payments for Reliable Shopping
- The quality solution for all your needs.
- Online assistance, always just a message away.
Designed for use in refrigeration and air conditioning systems, the Danfoss KP1 low pressure switch with 1/4″ flare connection provides protection from low suction pressure or high discharge pressure. It can also be used to start and stop refrigeration compressors and fans on air-cooled condensers. Connecting directly to a single-phase AC motor up to 2kW, the KP1 can alternatively be installed in the control circuit of DC or large AC motors. This device is fitted with a SPDT switch, its position determined by the pressure switch setting and pressure at the connector.Snap action function for ultra-short bounce;Short bounce minimises wear and increases reliability;Manual trip function;Electrical contact function can be tested without tools;Vibration and shock-resistant;Compact design;Fully welded bellows element;High mechanical and electrical reliability;Pressure rating 0.9 to 7 bar;0.7 bar pressure differential;IP30 rated
| Brand | Danfoss |
|---|---|
| Body Material | Ductile Iron |
| Type | Low Pressure Switch |
| Supplier Product Code | 060-110366 |
| Test Pressure | 20 bar |
| Reset (Auto or Manual) | Manual |
| Pressure Rating | -0.9 to 7 bar |
| Material | Ductile Iron |
| IP Rating | IP30 |
| Hazardous | N |
| Colour | Galvanised |
| Evaporator Fans | – |
| Warranty | 1 Year |
| Range Type | Mechanical Controls |
| Pressure | LP |
| Model Number | KP1 |
| Material Type | Ductile Iron |
| Connection Type | Flare |
| Connection | Flare |
| WEEE Compliant | N |
