Danfoss T2 MOP Solder Internal Equalizer (Range-B)

Original price was: £52.30.Current price is: £36.61.

SKU: P693565 Categories: Controls, Expansion Valves and Orifices, Refrigeration

Experience the difference quality makes.
Reliable Payments for Reliable Shopping
The quality solution for all your needs.
Online assistance, always just a message away.

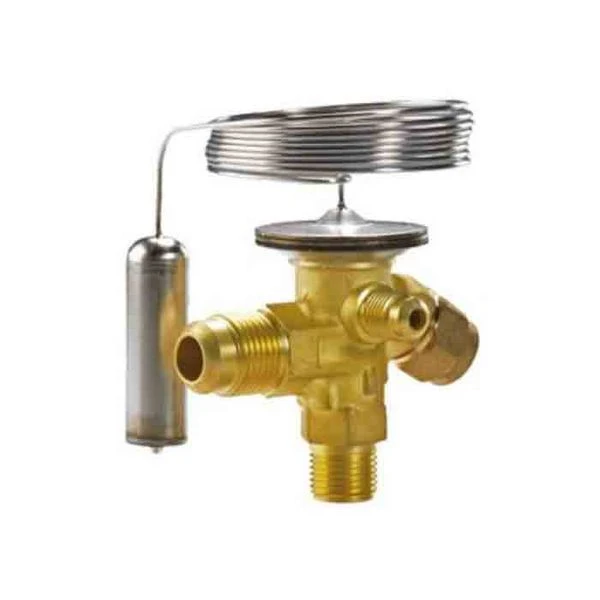

Used to regulate the injection of R404A or R507A refrigerant into an evaporator, the Danfoss T2 3/8 x 1/2″ thermostatic expansion valve is particularly well suited to liquid injection in dry evaporators where the superheat at the evaporator’s outlet is proportional to evaporator load.Wide temperature range;Flare connections;Suitable for freezing, refrigeration and air conditioning use;Interchangeable orifice assembly;Easy storage and capacity matching;Cleaning and replacement of filter is simple;Can be supplied with MOP (maximum operating pressure);Protects compressor motor from excessive evaporating pressure;Stainless steel bulb;Danfoss patented bulb strap;Quick, easy installation;Good pipe to bulb temperature transfer;Design protected;Internally Equalised pressure

Brand	Danfoss
Hazardous	N
Type	Thermostatic Expansion Valve
Supplier Product Code	068Z3410
Refrigerant Compatibility	R404A;R507A
Material	Brass
IP Rating	–
Body Material	Brass
Connection Size (mm)	3/8 x 1/2 inch
Cable Length (mtr)	–
Evaporator Fans	–
Connection	Flare
Valve Connections	3/8 x 1/2
Refrigerant Suitability	R404A;R507
Refrigerant	R404A
Warranty	1 Year
Range Type	Mechanical Controls
Model Number	T2
Material Type	Brass
Connection Type	Flare
Connection Size	3/8 x 1/2 inch
WEEE Compliant	N
