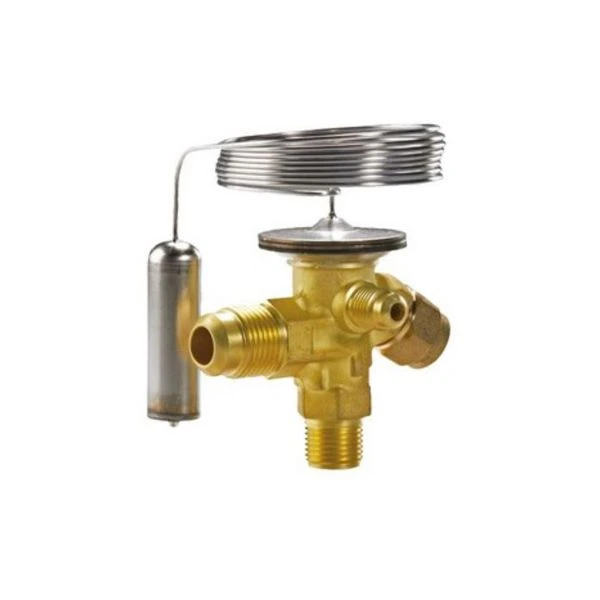

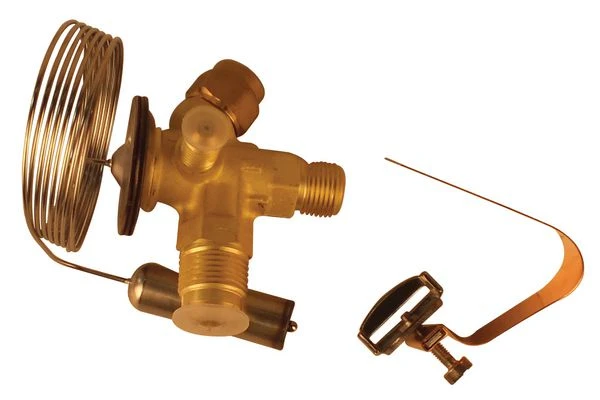

Used to regulate the injection of R22 and R407C refrigerant into an evaporator, the Danfoss TE2 3/8 x 1/2″ thermostatic expansion valve is particularly well suited to liquid injection in dry evaporators where the superheat at the evaporator’s outlet is proportional to evaporator load.Wide temperature range;Flare connections;Suitable for freezing, refrigeration and air conditioning use;Interchangeable orifice assembly;Easy storage and capacity matching;Cleaning and replacement of filter is simple;Can be supplied with MOP (maximum operating pressure);Protects compressor motor from excessive evaporating pressure;Stainless steel bulb;Danfoss patented bulb strap;Quick, easy installation;Good pipe to bulb temperature transfer;Design protected;Externally Equalised pressure
Danfoss TE2 Flared External Equalization (Range-N)
£100.30 Original price was: £100.30.£70.21Current price is: £70.21.
SKU: P675082 Categories: Controls, Expansion Valves and Orifices, Refrigeration
- Experience the difference quality makes.
- Reliable Payments for Reliable Shopping
- The quality solution for all your needs.
- Online assistance, always just a message away.

| Brand | Danfoss |
|---|---|
| Hazardous | N |
| Type | Thermostatic Expansion Valve |
| Supplier Product Code | 068Z3209 |
| Refrigerant Compatibility | R22;R407C |
| Material | Brass |
| IP Rating | – |
| Body Material | Brass |
| Connection Size (mm) | 10 x 12 mm3/8 x 1/2 in |
| Cable Length (mtr) | – |
| Evaporator Fans | – |
| Connection | Flare |
| Valve Connections | 3/8 x 1/2 x 1/4 |
| Refrigerant Suitability | R22/R407C |
| Refrigerant | R22 |
| Warranty | 1 Year |
| Range Type | Mechanical Controls |
| Model Number | TE2 |
| Material Type | Brass |
| Connection Type | Flare |
| Connection Size | 10 x 12 mm3/8 x 1/2 in |
| WEEE Compliant | N |
